Analysis: Evaluation & Results Analysis
Introduction
Analysis
is designed to show the graphical reports of Intraday Trading
, which helps users to evaluate and analyse investment portfolios visually. The following are some graphics to view:
- analysis_position
report_graph
score_ic_graph
cumulative_return_graph
risk_analysis_graph
rank_label_graph
- analysis_model
model_performance_graph
All of the accumulated profit metrics(e.g. return, max drawdown) in Qlib are calculated by summation. This avoids the metrics or the plots being skewed exponentially over time.
Graphical Reports
Users can run the following code to get all supported reports.
>> import qlib.contrib.report as qcr
>> print(qcr.GRAPH_NAME_LIST)
['analysis_position.report_graph', 'analysis_position.score_ic_graph', 'analysis_position.cumulative_return_graph', 'analysis_position.risk_analysis_graph', 'analysis_position.rank_label_graph', 'analysis_model.model_performance_graph']
Note
For more details, please refer to the function document: similar to help(qcr.analysis_position.report_graph)
Usage & Example
Usage of analysis_position.report
API
- qlib.contrib.report.analysis_position.report.report_graph(report_df: DataFrame, show_notebook: bool = True) [<class 'list'>, <class 'tuple'>]
display backtest report
Example:
import qlib import pandas as pd from qlib.utils.time import Freq from qlib.utils import flatten_dict from qlib.backtest import backtest, executor from qlib.contrib.evaluate import risk_analysis from qlib.contrib.strategy import TopkDropoutStrategy # init qlib qlib.init(provider_uri=<qlib data dir>) CSI300_BENCH = "SH000300" FREQ = "day" STRATEGY_CONFIG = { "topk": 50, "n_drop": 5, # pred_score, pd.Series "signal": pred_score, } EXECUTOR_CONFIG = { "time_per_step": "day", "generate_portfolio_metrics": True, } backtest_config = { "start_time": "2017-01-01", "end_time": "2020-08-01", "account": 100000000, "benchmark": CSI300_BENCH, "exchange_kwargs": { "freq": FREQ, "limit_threshold": 0.095, "deal_price": "close", "open_cost": 0.0005, "close_cost": 0.0015, "min_cost": 5, }, } # strategy object strategy_obj = TopkDropoutStrategy(**STRATEGY_CONFIG) # executor object executor_obj = executor.SimulatorExecutor(**EXECUTOR_CONFIG) # backtest portfolio_metric_dict, indicator_dict = backtest(executor=executor_obj, strategy=strategy_obj, **backtest_config) analysis_freq = "{0}{1}".format(*Freq.parse(FREQ)) # backtest info report_normal_df, positions_normal = portfolio_metric_dict.get(analysis_freq) qcr.analysis_position.report_graph(report_normal_df)
- Parameters
report_df –
df.index.name must be date, df.columns must contain return, turnover, cost, bench.
return cost bench turnover date 2017-01-04 0.003421 0.000864 0.011693 0.576325 2017-01-05 0.000508 0.000447 0.000721 0.227882 2017-01-06 -0.003321 0.000212 -0.004322 0.102765 2017-01-09 0.006753 0.000212 0.006874 0.105864 2017-01-10 -0.000416 0.000440 -0.003350 0.208396
show_notebook – whether to display graphics in notebook, the default is True.
- Returns
if show_notebook is True, display in notebook; else return plotly.graph_objs.Figure list.
Graphical Result
Note
Axis X: Trading day
- Axis Y:
- cum bench
Cumulative returns series of benchmark
- cum return wo cost
Cumulative returns series of portfolio without cost
- cum return w cost
Cumulative returns series of portfolio with cost
- return wo mdd
Maximum drawdown series of cumulative return without cost
- return w cost mdd:
Maximum drawdown series of cumulative return with cost
- cum ex return wo cost
The CAR (cumulative abnormal return) series of the portfolio compared to the benchmark without cost.
- cum ex return w cost
The CAR (cumulative abnormal return) series of the portfolio compared to the benchmark with cost.
- turnover
Turnover rate series
- cum ex return wo cost mdd
Drawdown series of CAR (cumulative abnormal return) without cost
- cum ex return w cost mdd
Drawdown series of CAR (cumulative abnormal return) with cost
The shaded part above: Maximum drawdown corresponding to cum return wo cost
The shaded part below: Maximum drawdown corresponding to cum ex return wo cost
Usage of analysis_position.score_ic
API
- qlib.contrib.report.analysis_position.score_ic.score_ic_graph(pred_label: DataFrame, show_notebook: bool = True) [<class 'list'>, <class 'tuple'>]
score IC
Example:
from qlib.data import D from qlib.contrib.report import analysis_position pred_df_dates = pred_df.index.get_level_values(level='datetime') features_df = D.features(D.instruments('csi500'), ['Ref($close, -2)/Ref($close, -1)-1'], pred_df_dates.min(), pred_df_dates.max()) features_df.columns = ['label'] pred_label = pd.concat([features_df, pred], axis=1, sort=True).reindex(features_df.index) analysis_position.score_ic_graph(pred_label)
- Parameters
pred_label –
index is pd.MultiIndex, index name is [instrument, datetime]; columns names is [score, label].
instrument datetime score label SH600004 2017-12-11 -0.013502 -0.013502 2017-12-12 -0.072367 -0.072367 2017-12-13 -0.068605 -0.068605 2017-12-14 0.012440 0.012440 2017-12-15 -0.102778 -0.102778
show_notebook – whether to display graphics in notebook, the default is True.
- Returns
if show_notebook is True, display in notebook; else return plotly.graph_objs.Figure list.
Graphical Result
Note
Axis X: Trading day
- Axis Y:
- ic
The Pearson correlation coefficient series between label and prediction score. In the above example, the label is formulated as Ref($close, -2)/Ref($close, -1)-1. Please refer to Data Feature for more details.
- rank_ic
The Spearman’s rank correlation coefficient series between label and prediction score.
Usage of analysis_position.risk_analysis
API
- qlib.contrib.report.analysis_position.risk_analysis.risk_analysis_graph(analysis_df: Optional[DataFrame] = None, report_normal_df: Optional[DataFrame] = None, report_long_short_df: Optional[DataFrame] = None, show_notebook: bool = True) Iterable[Figure]
Generate analysis graph and monthly analysis
Example:
import qlib import pandas as pd from qlib.utils.time import Freq from qlib.utils import flatten_dict from qlib.backtest import backtest, executor from qlib.contrib.evaluate import risk_analysis from qlib.contrib.strategy import TopkDropoutStrategy # init qlib qlib.init(provider_uri=<qlib data dir>) CSI300_BENCH = "SH000300" FREQ = "day" STRATEGY_CONFIG = { "topk": 50, "n_drop": 5, # pred_score, pd.Series "signal": pred_score, } EXECUTOR_CONFIG = { "time_per_step": "day", "generate_portfolio_metrics": True, } backtest_config = { "start_time": "2017-01-01", "end_time": "2020-08-01", "account": 100000000, "benchmark": CSI300_BENCH, "exchange_kwargs": { "freq": FREQ, "limit_threshold": 0.095, "deal_price": "close", "open_cost": 0.0005, "close_cost": 0.0015, "min_cost": 5, }, } # strategy object strategy_obj = TopkDropoutStrategy(**STRATEGY_CONFIG) # executor object executor_obj = executor.SimulatorExecutor(**EXECUTOR_CONFIG) # backtest portfolio_metric_dict, indicator_dict = backtest(executor=executor_obj, strategy=strategy_obj, **backtest_config) analysis_freq = "{0}{1}".format(*Freq.parse(FREQ)) # backtest info report_normal_df, positions_normal = portfolio_metric_dict.get(analysis_freq) analysis = dict() analysis["excess_return_without_cost"] = risk_analysis( report_normal_df["return"] - report_normal_df["bench"], freq=analysis_freq ) analysis["excess_return_with_cost"] = risk_analysis( report_normal_df["return"] - report_normal_df["bench"] - report_normal_df["cost"], freq=analysis_freq ) analysis_df = pd.concat(analysis) # type: pd.DataFrame analysis_position.risk_analysis_graph(analysis_df, report_normal_df)
- Parameters
analysis_df –
analysis data, index is pd.MultiIndex; columns names is [risk].
risk excess_return_without_cost mean 0.000692 std 0.005374 annualized_return 0.174495 information_ratio 2.045576 max_drawdown -0.079103 excess_return_with_cost mean 0.000499 std 0.005372 annualized_return 0.125625 information_ratio 1.473152 max_drawdown -0.088263
report_normal_df –
df.index.name must be date, df.columns must contain return, turnover, cost, bench.
return cost bench turnover date 2017-01-04 0.003421 0.000864 0.011693 0.576325 2017-01-05 0.000508 0.000447 0.000721 0.227882 2017-01-06 -0.003321 0.000212 -0.004322 0.102765 2017-01-09 0.006753 0.000212 0.006874 0.105864 2017-01-10 -0.000416 0.000440 -0.003350 0.208396
report_long_short_df –
df.index.name must be date, df.columns contain long, short, long_short.
long short long_short date 2017-01-04 -0.001360 0.001394 0.000034 2017-01-05 0.002456 0.000058 0.002514 2017-01-06 0.000120 0.002739 0.002859 2017-01-09 0.001436 0.001838 0.003273 2017-01-10 0.000824 -0.001944 -0.001120
show_notebook – Whether to display graphics in a notebook, default True. If True, show graph in notebook If False, return graph figure
- Returns
Graphical Result
Note
- general graphics
- std
- excess_return_without_cost
The Standard Deviation of CAR (cumulative abnormal return) without cost.
- excess_return_with_cost
The Standard Deviation of CAR (cumulative abnormal return) with cost.
- annualized_return
- excess_return_without_cost
The Annualized Rate of CAR (cumulative abnormal return) without cost.
- excess_return_with_cost
The Annualized Rate of CAR (cumulative abnormal return) with cost.
- information_ratio
- excess_return_without_cost
The Information Ratio without cost.
- excess_return_with_cost
The Information Ratio with cost.
To know more about Information Ratio, please refer to Information Ratio – IR.
- max_drawdown
- excess_return_without_cost
The Maximum Drawdown of CAR (cumulative abnormal return) without cost.
- excess_return_with_cost
The Maximum Drawdown of CAR (cumulative abnormal return) with cost.
Note
- annualized_return/max_drawdown/information_ratio/std graphics
Axis X: Trading days grouped by month
- Axis Y:
- annualized_return graphics
- excess_return_without_cost_annualized_return
The Annualized Rate series of monthly CAR (cumulative abnormal return) without cost.
- excess_return_with_cost_annualized_return
The Annualized Rate series of monthly CAR (cumulative abnormal return) with cost.

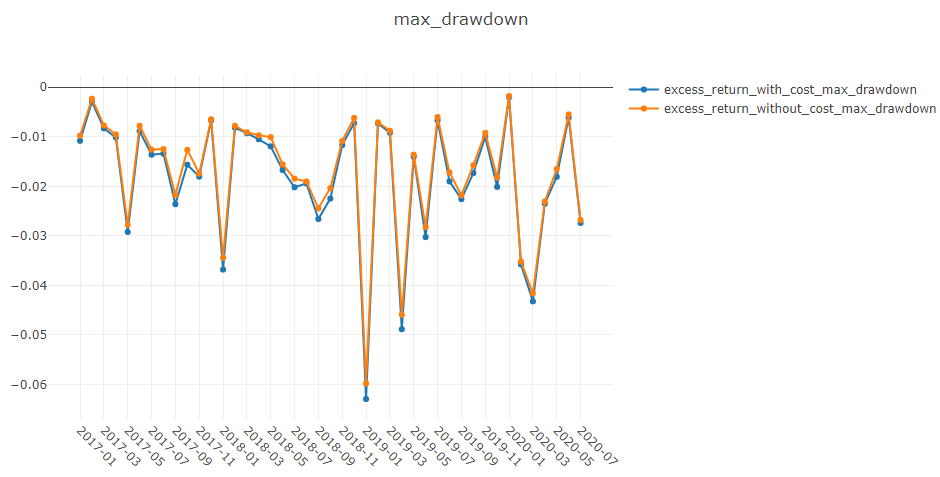

- max_drawdown graphics
- excess_return_without_cost_max_drawdown
The Maximum Drawdown series of monthly CAR (cumulative abnormal return) without cost.
- excess_return_with_cost_max_drawdown
The Maximum Drawdown series of monthly CAR (cumulative abnormal return) with cost.

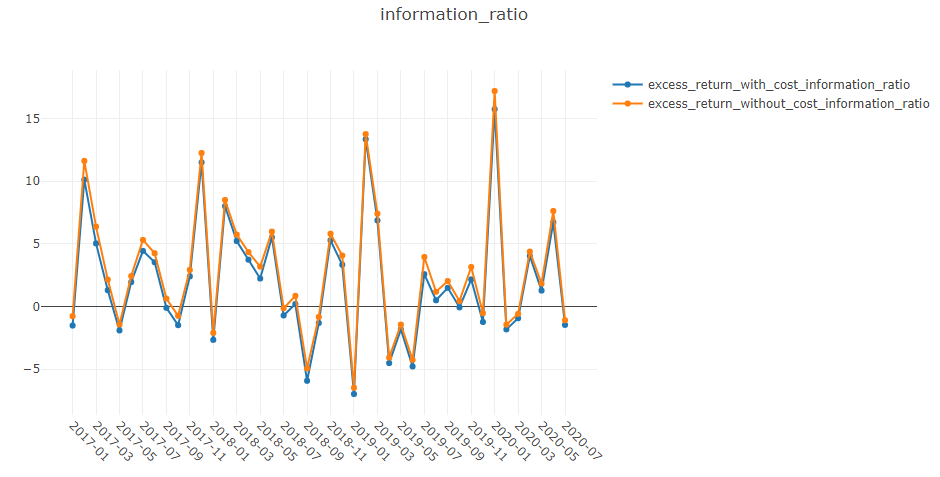

- information_ratio graphics
- excess_return_without_cost_information_ratio
The Information Ratio series of monthly CAR (cumulative abnormal return) without cost.
- excess_return_with_cost_information_ratio
The Information Ratio series of monthly CAR (cumulative abnormal return) with cost.
- std graphics
- excess_return_without_cost_max_drawdown
The Standard Deviation series of monthly CAR (cumulative abnormal return) without cost.
- excess_return_with_cost_max_drawdown
The Standard Deviation series of monthly CAR (cumulative abnormal return) with cost.
Usage of analysis_model.analysis_model_performance
API
- qlib.contrib.report.analysis_model.analysis_model_performance.ic_figure(ic_df: DataFrame, show_nature_day=True, **kwargs) Figure
IC figure
- Parameters
ic_df – ic DataFrame
show_nature_day – whether to display the abscissa of non-trading day
- Returns
plotly.graph_objs.Figure
- qlib.contrib.report.analysis_model.analysis_model_performance.model_performance_graph(pred_label: DataFrame, lag: int = 1, N: int = 5, reverse=False, rank=False, graph_names: list = ['group_return', 'pred_ic', 'pred_autocorr'], show_notebook: bool = True, show_nature_day=True) [<class 'list'>, <class 'tuple'>]
Model performance
- Parameters
pred_label – index is pd.MultiIndex, index name is [instrument, datetime]; columns names is **[score,
label]**. It is usually same as the label of model training(e.g. “Ref($close, -2)/Ref($close, -1) - 1”).
instrument datetime score label SH600004 2017-12-11 -0.013502 -0.013502 2017-12-12 -0.072367 -0.072367 2017-12-13 -0.068605 -0.068605 2017-12-14 0.012440 0.012440 2017-12-15 -0.102778 -0.102778
- Parameters
lag – pred.groupby(level=’instrument’)[‘score’].shift(lag). It will be only used in the auto-correlation computing.
N – group number, default 5.
reverse – if True, pred[‘score’] *= -1.
rank – if True, calculate rank ic.
graph_names – graph names; default [‘cumulative_return’, ‘pred_ic’, ‘pred_autocorr’, ‘pred_turnover’].
show_notebook – whether to display graphics in notebook, the default is True.
show_nature_day – whether to display the abscissa of non-trading day.
- Returns
if show_notebook is True, display in notebook; else return plotly.graph_objs.Figure list.
Graphical Results
Note

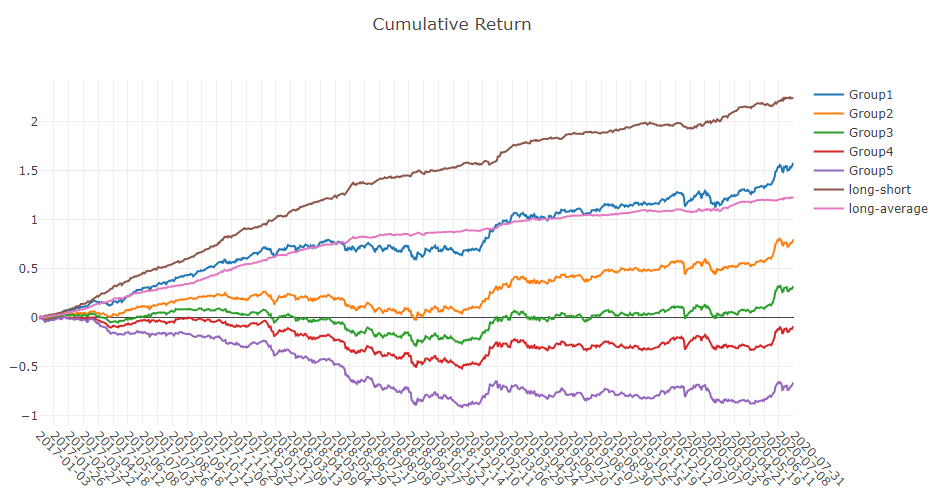

- cumulative return graphics
- Group1:
The Cumulative Return series of stocks group with (ranking ratio of label <= 20%)
- Group2:
The Cumulative Return series of stocks group with (20% < ranking ratio of label <= 40%)
- Group3:
The Cumulative Return series of stocks group with (40% < ranking ratio of label <= 60%)
- Group4:
The Cumulative Return series of stocks group with (60% < ranking ratio of label <= 80%)
- Group5:
The Cumulative Return series of stocks group with (80% < ranking ratio of label)
- long-short:
The Difference series between Cumulative Return of Group1 and of Group5
- long-average
The Difference series between Cumulative Return of Group1 and average Cumulative Return for all stocks.
- The ranking ratio can be formulated as follows.
- \[ranking\ ratio = \frac{Ascending\ Ranking\ of\ label}{Number\ of\ Stocks\ in\ the\ Portfolio}\]
Note

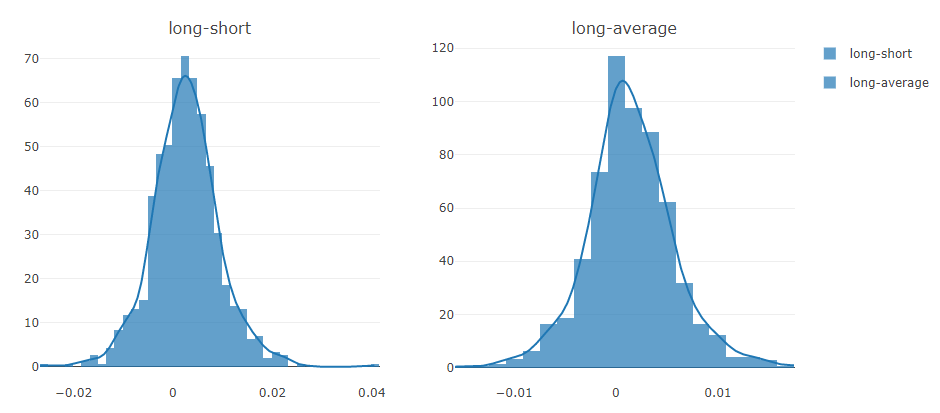

- long-short/long-average
The distribution of long-short/long-average returns on each trading day
Note

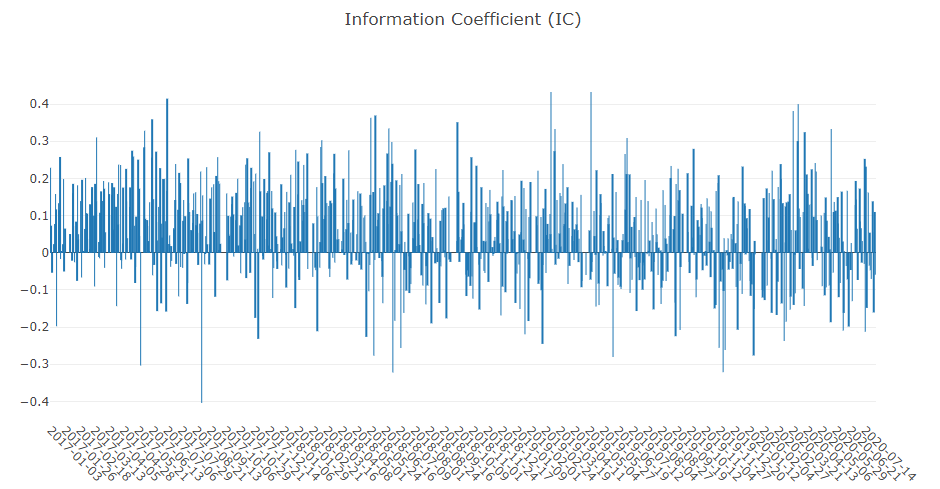

- Information Coefficient
The Pearson correlation coefficient series between labels and prediction scores of stocks in portfolio.
The graphics reports can be used to evaluate the prediction scores.
Note
- Monthly IC
Monthly average of the Information Coefficient
Note

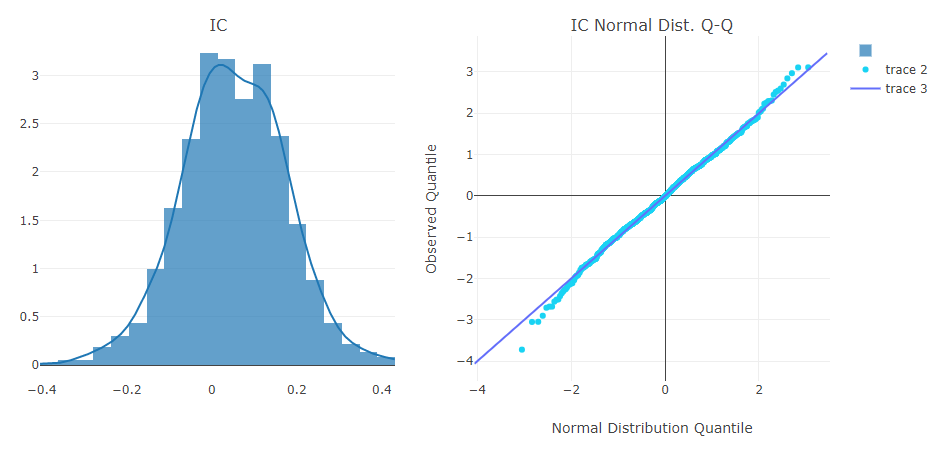

- IC
The distribution of the Information Coefficient on each trading day.
- IC Normal Dist. Q-Q
The Quantile-Quantile Plot is used for the normal distribution of Information Coefficient on each trading day.
Note

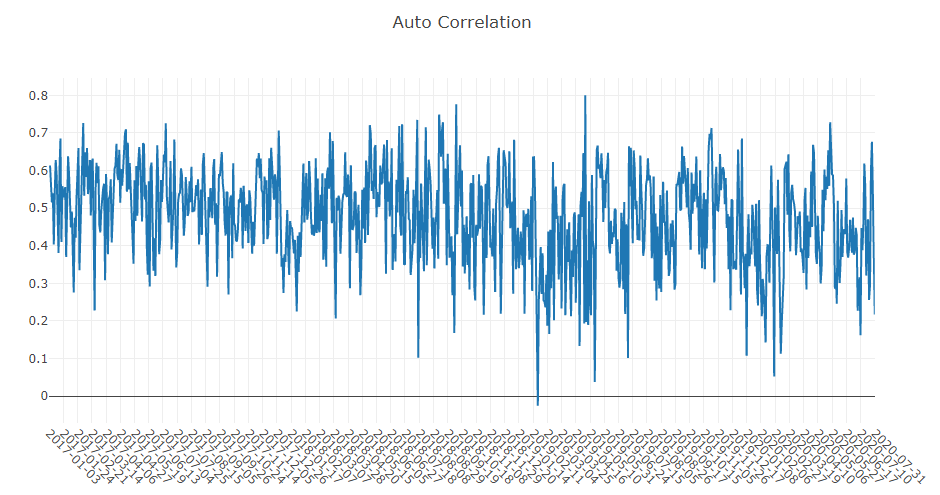

- Auto Correlation
The Pearson correlation coefficient series between the latest prediction scores and the prediction scores lag days ago of stocks in portfolio on each trading day.
The graphics reports can be used to estimate the turnover rate.
